Pallet wrapping machine

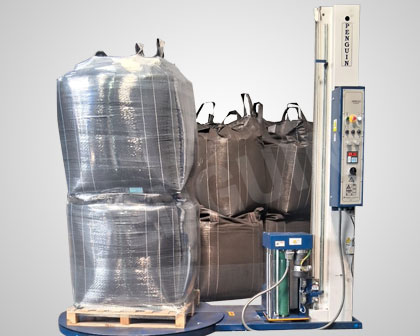

Penguin Pallet stretch wrapping machine is an ideal machine for wrapping pallets, including high-cube containers, ready to be exported in containers. Also, the stretch film packing is used for protection against perforation, moisture, protection against corrosion from sea air, dust etc. It is ideal for packing products like textile cone yarn, castings, light & heavy engineering goods, pharmaceutical products, electrical & home appliances, sacks containing grains, chemicals, fertilizers, tins containing, fruit pulp, paint, liquids, lubricants, jumbo bags containing products like: activated carbon, granules, powders etc.
Penguin engineers
Manufactured by: Penguin Engineers

About Penguin Pallet wrapper

View the video of Pallet Wrapping machine

Pallet wrapping machine

Pallet wrapper Pallet wrapper with yarn stacked upto high cube container

The Penguin Stretch Wrapping Machine is a fully automatic machine for wrapping pallets using stretch cling film.

  • This machine is used in many countries for wrapping pallets with pre-stretched cling film. It ensures stable and moisture-proof wrapping of pallets at minimum cost. Optimum wrapping of pallets using wide range of film material is made possible by the state-of-the-art "Powered Pre-Stretch Unit " which can stretch the film up to 300% (One meter long becomes 4 meters long). Powered Pre-Stretch unit has a separate motor to stretch the film.
  • This simple and sturdy machine can operate continuously under severe industrial environment. The machine can be easily operated by unskilled workers in the packing line as the cycle of operation is completely automated.
  • Stretch wrapped Pallet of yarn cones. The picture shows 432 cones of 2 kg each stacked on a pallet of size 44" x 44". The cones are stacked in 12 layers of 36 cones per layer. Ten such pallets can be stuffed in one 20 feet container.
    Read more...

Penguin Pallet wrapper Features

Pallet wrapper to wrap pallets with more height Penguin pallet packing machine with customized features with four meters height pillar
Pallet wrapper with PLC Penguin pallet packing machine equipped with fully automatic cycle with PLC - Model Innova
Pallet wrapper for big size pallets Penguin stretch wrapping machine with customized turn table with 3.2 meters round.
Pallet wrapper with pneumatic hold at top Penguin pallet stretch wrapping machine with top platen for unstable products. Seen in the photo of a woolen cheese packed using stretch wrapping machine.



Applications

Yarns wrapped
Photo explaining the stretch wrapped polyester yarns. The difficulty in handling of the polyester yarns (due to unravelling) is overcome by penguin pallet stretch wrapper.
Stretch wrapped castings
Pallet with castings, including the valve body castings, metal castings stacked on wooden pallet. The pallet can be up to 2 tons weight. The savings for consumer is much higher when compared with wooden crate packing.
Wrapped castings
Penguin stretch wrapped pallet for big castings. Top wooden plate is used when there is a need to stack one pallet over another. Ideal for protection against corrosion, export packing.
Stretch wrapped tins
Penguin pallet packing machine is ideal for export packing. This picture shows Mango pulp tins stretch wrapped in pallet. There are 6 layers and 49 cans in each layer. The net weight of the pallet is around 1400 kgs
Pallet wrapper
The picture shows TV rear cabinets stacked on pallets for shifting from the moulding unit to the TV assembling unit within the country , saving huge money by eliminating carton boxes
Pallet wrapper of sacks
The picture shows the sacks stretch wrapped. 24 sacks are arranged in this pallet.
Paint pails stretch wrapped
Paint Pails are stretch wrapped using Stretch Wrapping Machine.
Stretch wrapped boxes
Carton Boxes are packed tightly for easy handling and transportation.

Specifications

CAPACITY Classic
Pallets / hour (nos) 15 - 25 pallets/hour
Pallet size (mm) 1200 L x 1200 W
Pallet height 2600 mm H
Weight / pallet 2000 Kg
Turn Table
Diameter 1500 / 1800 / 2000 mm
Height (above GL) 80 mm
Speed 1-10 rpm
Maximum stretch 300%
Installed power 1.5 kW
Power supply 220V, Single Phase, 50Hz
Shipping details 1250 kg/4.0m3
Film Details
Material LLDPE - Stretch Film
Film width 250 to 500 mm
Film thickness 12-35µ (23µ recommended)
Core diameter 76 mm
Maximum film diameter 250 mm

Features

  • Fully Automatic Machine.
  • Heavy duty turn table for all industrial applications.
  • Sturdy mast and machined guide ways for guiding the stretch unit.
  • Compact stretch unit with change gears to vary stretch percentage.
  • Suitable for a wide range of stretch film material.
  • Modular in construction



More on Penguin Stretch Wrapping Machine: Model Classic

The Stretch Wrapping Machine (Model Classic) is using 220 V, single phase, 15 Amps, & 1.5 KW power supply. The cycle of operation can be programmed and monitored through a micro-processor interface. It is easy to operate & very simple to maintain; it is sturdy & user friendly. In many cases we can load more quantity of our Goods by reducing / eliminating use of wood / corrugated boxes etc., thereby conserving natural ecology. Thus the savings in packing material costs, and the profits due to additional quantity of goods exported in each containers (due to less tare weight) pay back its cost of investment very quickly, say by the time when 25 – 30 container loads are exported using this machine.

The Model: CLASSIC is highly suitable for most of the industries exporting their goods in huge volumes. Composite Textile Mills can use this machine for internal transportation of Yarn from Spinning to Weaving section, similar to transportation of TV cabinets explained above. Advantages like savings in Labour cost, in time taken for loading & unloading, clarity of Goods for customs-inspection, moisture & dust proof packing etc., attract both the exporters & importers. This model has been installed in many countries like United Kingdom, Bahrain, Bangladesh, China, Japan, Malaysia, Sri Lanka, U. A. E., Venezuela, Indonesia, Egypt, Fiji Islands, UAE, Greece, Mauritius etc.
