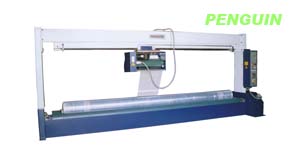

Stretch wrapping machine - Fabricroll


Stretch wrapping machine - Fabricroll
Penguin Roll Wrapping Machine - Fabrics, Carpets

Features
*Highly economical and huge savings over shrink packing/gunny bundles
*Suitable for packing any rolls of Denim Cloth, Curtain Cloth, Carpets, Foam sheets, Upholsteries, Fabrics, Film, Paper etc.
*High productivity 30 - 50 rolls/hour
*Tremendous savings in labour, time and money
*Highly durable dust and moisture proof packing
*Powered Pre-Stretch unit to minimize film consumption
*Variable stretch percentage up to 300 percentage
*Adjustable traverse to suit different roll width
*Controlled film tension
*Variable Overlap, Variable End Reinforcements, Variable Stretch Percentage and Variable Roller Speed
*Digital counters for end reinforcement wrap setting, film consumption and stretch percentage display
*Simple to operate, sturdy and safety control panel
*Cradle for easy loading of film
*Easy loading and unloading of Fabric roll and ease of integration into conveyor lines
*High energy saving-more than 90 percent saving over shrink wrapping
*Minimum service points
*Payback period is only few months
*Excellent after-sales-service support
*12 months warranty

Specifications
Capacity
Rolls/Hour: 30-40 rolls
Weight/ Roll: 400 kgs**
Roll Diameter: 600 mm**
Roll Width 1800 mm**
Machine
Turn Table Height (above GL): 350 mm
Turn Table Speed: 50 meters/minute
Maximum Stretch: 300 percentage
Installed Power: 1.1 kw
Power Supply: 220v, single phase, 50Hz
Film Details
Material: LLDPE - Stretch Film
Film Width: 250 to 500 mm
Film Thickness: 12-35 ยต
Core Diameter: 76 mm
Maximum Film. Diameter: 250 mm
Max. weight of film roll: 15/16 kgs ** We also offer custom built machines to suit your product requirements
